CONDUCTIVE LIQUIDS LEVEL CONTROL

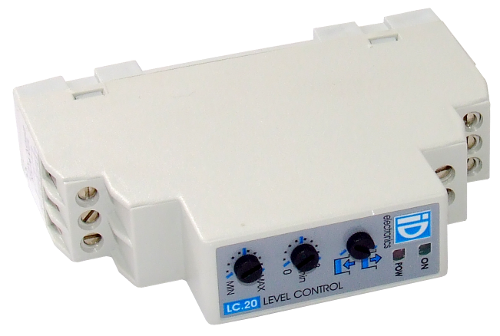

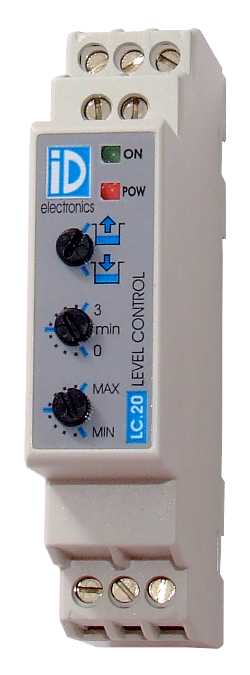

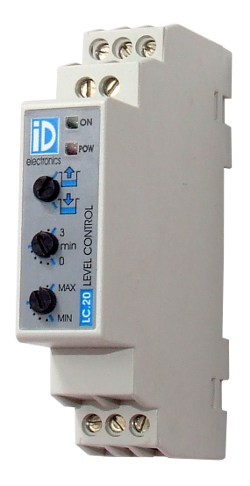

LC.20
Level control through electrodes.


LC20

Level contrloller for DIN rail mount. For all conductive liquids.

Adjustable sensitivity up to 60 KΩ resistance of the liquid between electrodes.
Adjustable time for starting the pump up to 3 minutes.
Suitable for emptying or filling a tank, a knob changes control action.


SPECIFICATIONS:
Supply  110/230V ±10%
Consumption: 2 VA MAX
Sensitivity  60KΩ
Contact rating: 250V  12A AC1
Transformer isolation: 1500V
