CONDUCTIVE LIQUIDS LEVEL DETECTORS

AQUA PLAN AP1
MIN - MAX LEVEL CONTROL USING ELECTRODES

nerou1












Works with three electrodes, unless the tank is conductive ( it uses only two). Works with all conductive liquids with adjustable sensitivity from 0 to 60 Kohm. Controls a pump that fills or empties a tank.


SPECIFICATIONS:
Sensitivity: 0-60 KOhm Max
Voltage across electrodes: 20V AC MAX
Amps through electrodes: 2 mA MAX
Supply voltage: 230V ± 10%
Contact amps: 10A AC1


stathmis syndesi





 AQUA PLAN DOUBLE LEVEL

nerou2



 diplo aq-plan sch






AQUA STOP AS1
EXISTENCE OF WATER IN TUBE, DETECTOR

stop1













Works with one electrode and conductive tubing. In case of plastic tubes Two electrodes must be used. The electrodes must be placed in a way that hold no water during water-lack.



SPECIFICATIONS:

Sensitivity: 0-60 KOhm Max
Voltage across electrodes: 20V AC MAX
Amps through electrodes: 2 mA MAX
Supply voltage: 230V ± 10%
Contact amps: 10A AC1

aq-stop-syndesi

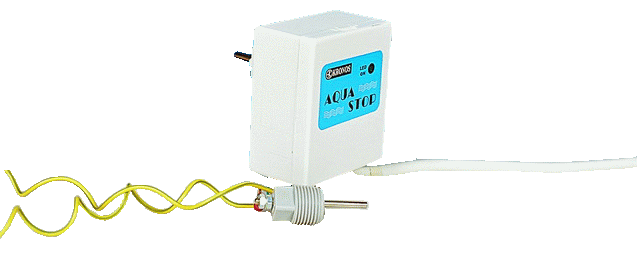

AQUA STOP with SCHUKO PLUG

AQUA STOP2  Ηλεκτρόδιο







Operates when it senses the presense of water in conductive tubing through an electrode. In case of plastic tubing two electrodes are used. 2 minutes delay-on, 5 sec delay-off. Suitable for direct connection of motor up to 1.5Hp

Relay contact: 30Α-AC1-250V max


Aq_stop_syndesi
