PHASE - VOLTAGE CONTROL

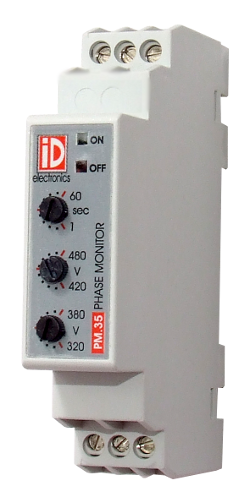

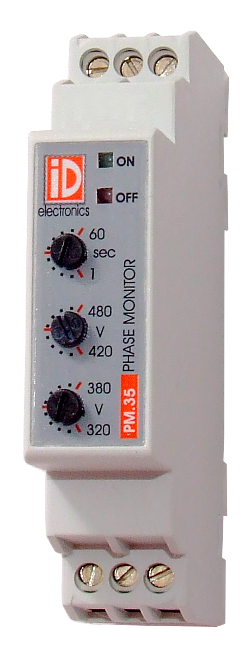

ADJUSTABLE 3-PHASE CONTROLLER PM.35 (N)

PM35  PM35


Three-phase mains network monitor for DIN rail mount.

Independant up and down limit adjustment.
Detects total loss of any line.
Adjusted delay-on time up to 60sec.
R-S-T sequence monitor.

PM.35N also monitors the neutral line.

SPECIFICATIONS:
Controlled Voltage: 3 x230 V AC/50 HZ
Consumption: 7 VA MAX
Precision: ±4% at MAX
Max contact amps: 8 A AC1
Max contact voltage: 250 V AC

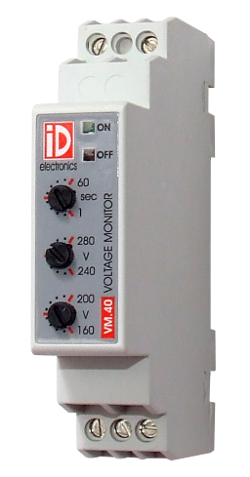

SINGLE PHASE CONTROLLER VM.40

VM40   VM40


Monitors voltage between line and neutral.
Adjustable limits ±5% - ±15%.

Adjustable on time up to 60sec.


SPECIFICATIONS:
Controlled Voltage: 230 V AC/50 HZ
Consumption: 7 VA MAX
Precision: ±2% at MAX
Max contact amps: 8 A AC1
Max contact voltage: 250 V AC






Connections:
