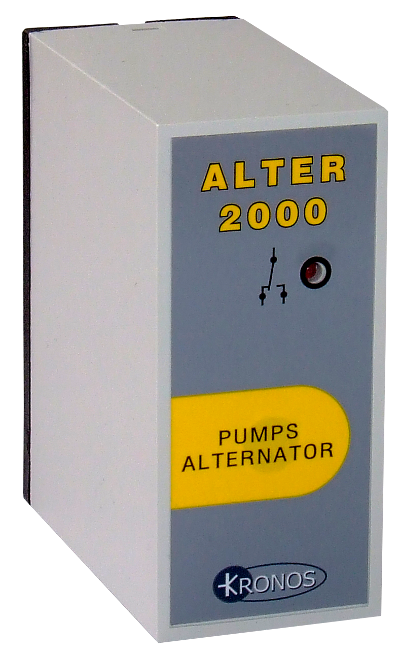

ALTER 2000

PUMPS ALTERNATOR

Alter2000


Controller for two pumps, ordered by two pressure or floating switches.  Each time P1 closes, the other pump starts.  When P2 closes, both pumps start. There is a 4sec delay for the second pump. The output voltage in the pressure switches is, for safety reasons, 12 VDC.

Specifications:
Supply: 220V AC 50HZ
Power: 3VA MAX
Max contact amps: 10A AC
Max contact voltage: 380V AC/DC

sch
